X-ray Tube Assembly
    Publish time 2023-01-23 00:00

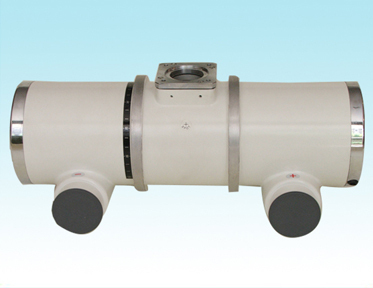

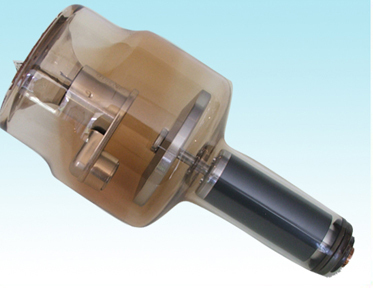

X-ray Tube Assembly

It is mainly used for medical diagnosis and matching with single-phase or three-phase full-wave rectifying high-voltage generator of central ground.


Specifications:

TypeHXD51-20、40/125
Maximum operating tube voltage(kV)125
Filament characteristic(V)

(Small filament)Ifmax=5.5A,Uf=7~9V

(The filament)Ifmax=5.5A,Uf=10~13V

Target materialsW
Target Angle17.5°
Diameter(mm)70
Speed(r/min)2700(50Hz)
The inherent filtration(mmAl)0.8~1.2
Weight(≤kg)18
Focal nominal value1.0/2.0
Maximum power(0.1s)(kw)20/40
Continuous maximum rating(W)410
Component radiation field354mm*354mm
Component heat capacity900kJ(1250kHU)
Insulation resistance between low        voltage terminal and housing2MΩ

Stator parameters Power supply

frequency (HZ)

50(start), 50(working)
Voltage(V)
160(start), 40(working)
Maximum startup time(S)1.2
Split phase capacitor (μF)40(start), 40(working)
