PRODUCT

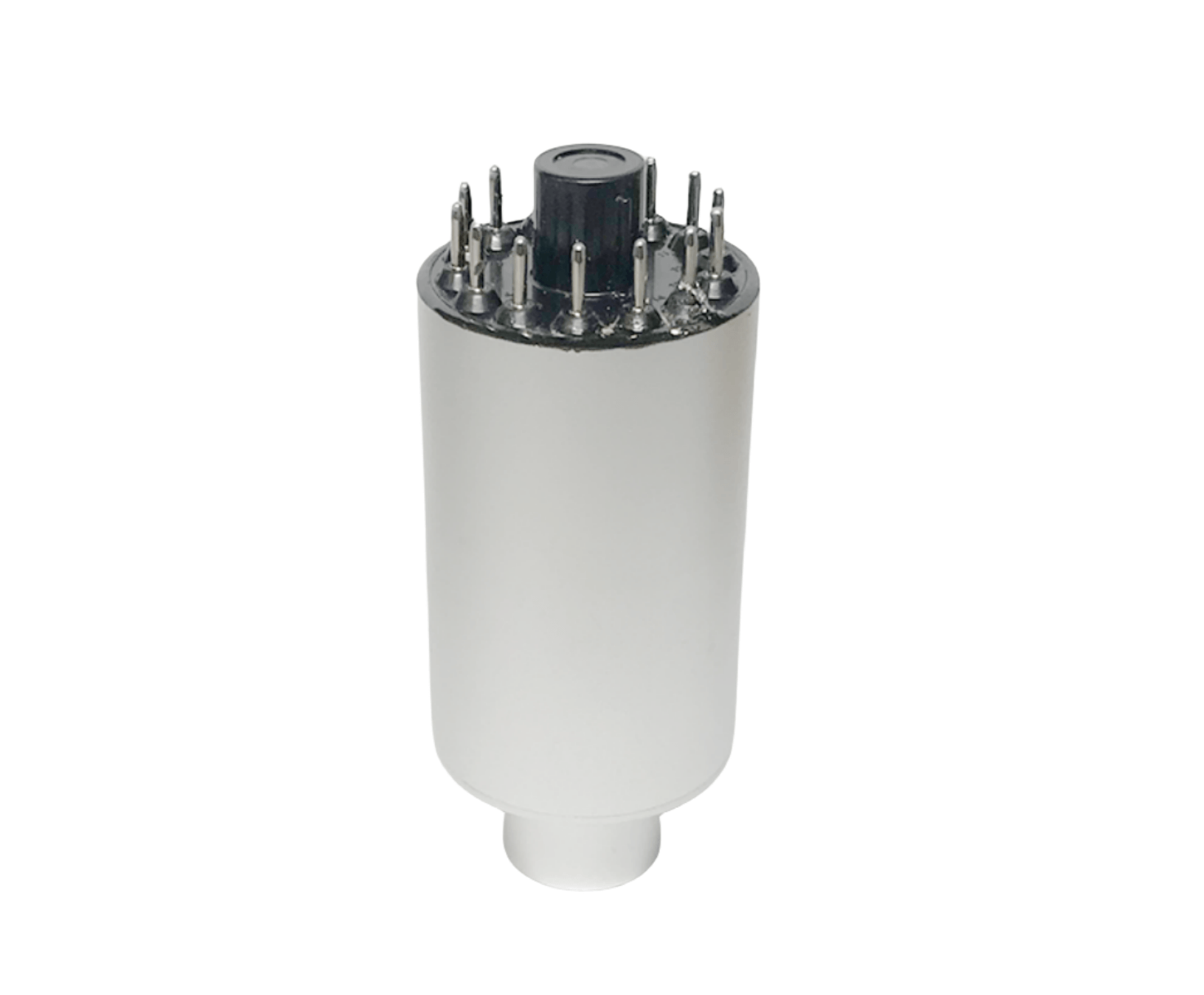

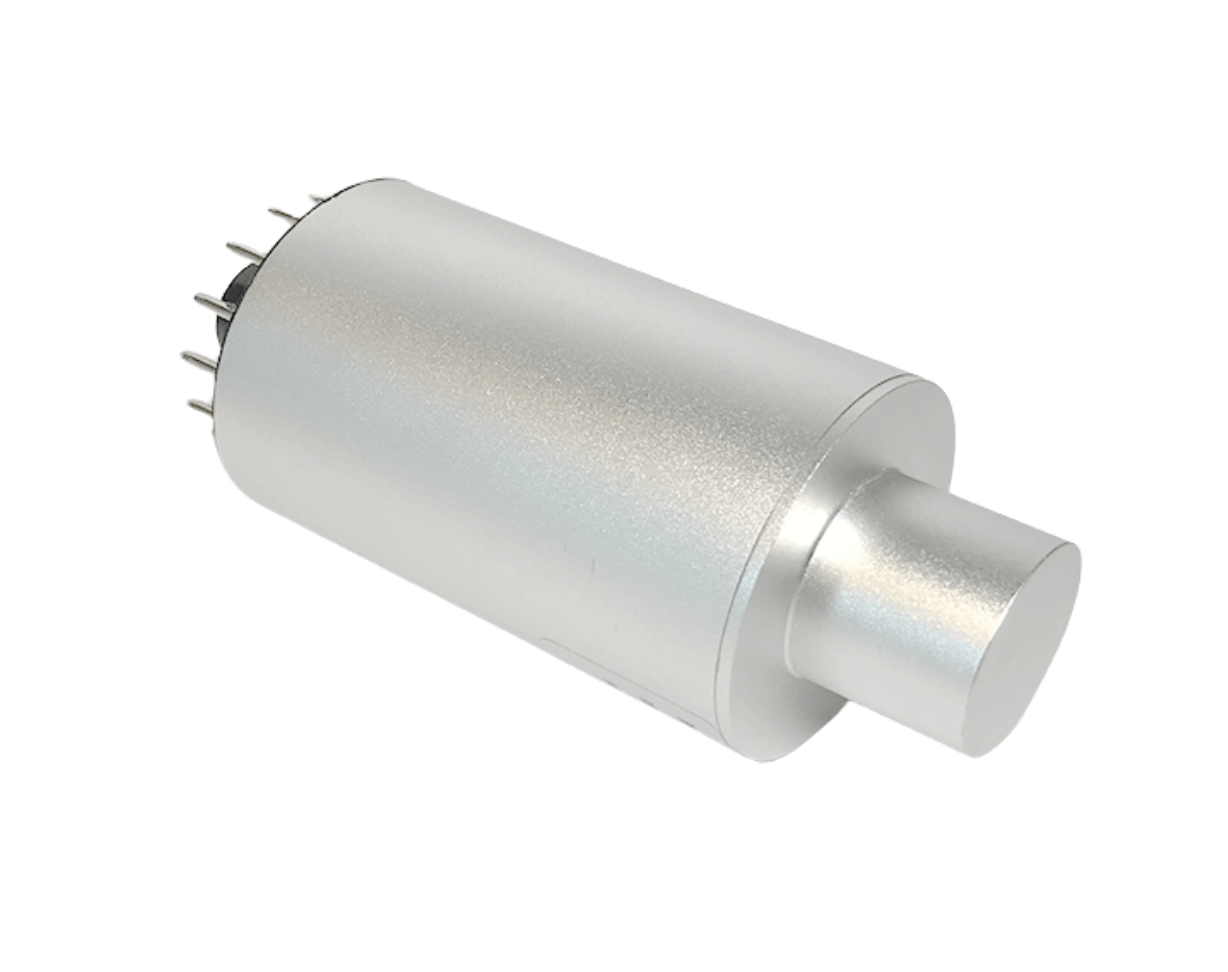

LaBr3(Ce) detector
Publish time 2020-05-08 00:00
PMT LaBr3(Ce) detectors list:
Type1:
| Crystal size | Dia25x25mm |
| Overall dimension | Dia59x120mm |
| Energy resolution | <3.5%@662keV (25℃) |
| Storage temperature | -50℃~55℃ |
| Working temperature | -40℃~55℃ |
Type2:
| Crystal size | Dia38x38mm |
| Overall dimension | Dia59x133mm |
| Energy resolution | <3.5%@662keV (25℃) |
| Storage temperature | -50℃~55℃ |
| Working temperature | -40℃~55℃ |
Type3:
| Crystal size | Dia50x50mm |
| Overall dimension | Dia60x156mm |
| Energy resolution | <3.5%@662keV (25℃) |
| Storage temperature | -50℃~55℃ |
| Working temperature | -40℃~55℃ |
Related applications with LaBr3: φ2x2"detector+Preamplifier
Type4:
| Crystal size | Dia76x76mm |
| Overall dimension | Dia85x188mm |
| Energy resolution | <3.5%@662keV (25℃) |
| Storage temperature | -50℃~55℃ |
| Working temperature | -40℃~55℃ |
SiPM LaBr3(Ce) detectors list:
Type1:
| Crystal size | Dia10x10mm |
| Overall dimension | Dia17x29mm |
| Energy resolution | <3.5%@662keV (25℃) |
| Storage temperature | -20℃~50℃ |
| Working temperature | 25℃~50℃ |
Type2:
Crystal size | 12x12x12mm |
| Overall dimension | 16x16x33mm |
| Energy resolution | <3.5%@662keV (25℃) |
| Storage temperature | -20℃~50℃ |
| Working temperature | 25℃~50℃ |
Type3:
| Crystal size | Dia20x20mm |
| Overall dimension | Dia25x43mm |
| Energy resolution | <3.5%@662keV (25℃) |
| Storage temperature | -20℃~50℃ |
| Working temperature | 25℃~50℃ |
