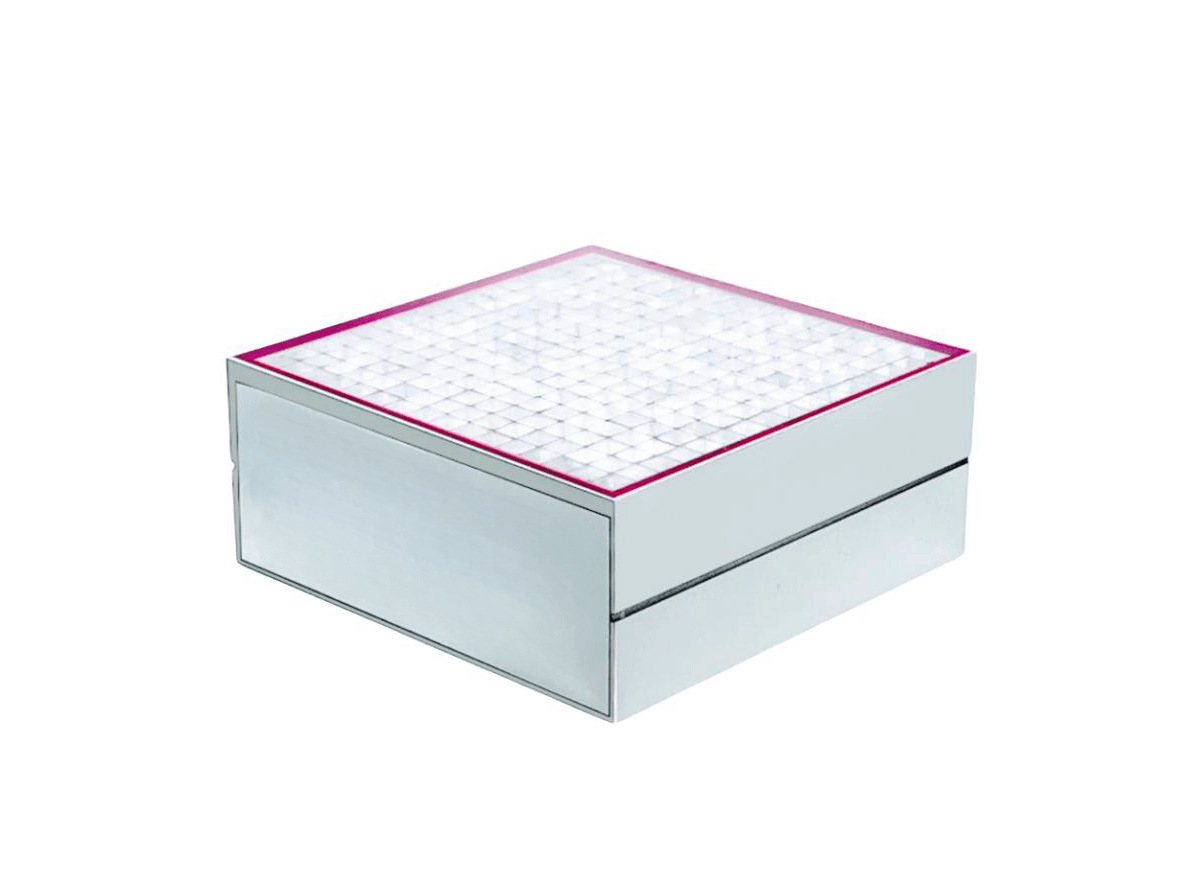

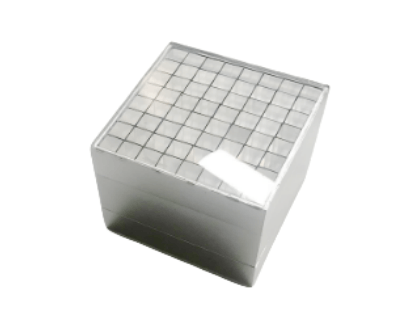

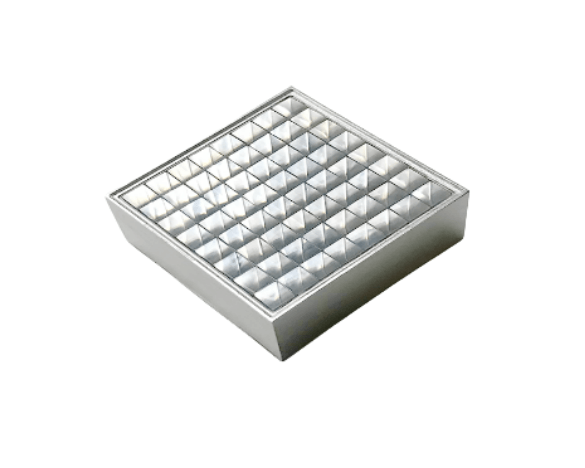

Multi-pixel LaBr3 crystal array list:
Type1:
Crystal size | 4x4x20mm (12x12 array) |
Overall dimension | 56x56x25mm |
Energy resolution | <13%@662keV |
Storage temperature | -25℃~50℃ |
Working temperature | 25℃~50℃ |
Type2:
Crystal size | 3x3x18mm (16x16 array) |
Overall dimension | 56x56x22mm |
Energy resolution | <13%@662keV |
Storage temperature | -25℃~50℃ |
Working temperature | 25℃~50℃ |
Type3:
Crystal size | 6x6x20mm (8x8 array) |
Overall dimension | 53x53x24mm |
Energy resolution | <13%@662keV |
Storage temperature | -25℃~50℃ |
Working temperature | 25℃~50℃ |
Type4:
Crystal size | 6x6x50mm (8x8 array) |
Overall dimension | 56x56x53mm |
Energy resolution | <13%@662keV |
Storage temperature | -25℃~50℃ |
Working temperature | 25℃~50℃ |
