Introduction:

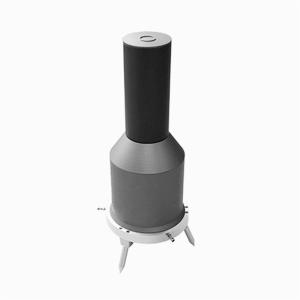

UltraRED is a highly sensitive environmental gamma radiation monitor, which can continuously monitor the gamma dose rate and cumulative dose changes in the atmospheric environment in real time around the clock. The dose rate value is given by the energy spectrum-dose conversion technology, which significantly improves the measurement accuracy. At the same time, the nuclide identification results are given, which is especially important for early radiation warning systems. The instrument is flexible in installation and use, and can be configured in a variety of ways. It can be widely used in the fields of radiation environment monitoring around nuclear power plants/nuclear facilities, nuclear accident emergency monitoring, and radioactive contamination inspection.
Features:
1) All-weather continuous gamma dose rate measurement and alarm;
2) Real-time energy spectrum analysis and nuclide identification capabilities;
3) Long-term automatic operation, maintenance-free;
4) Unique energy-dose conversion algorithm;
5) Rich nuclide library, user can edit;
6) Rich communication interface.
Specifications:
| Detector | Φ3*3 inches NaI(Tl) scintillation detector + energy compensation GM tube, Optional LaBr3(Ce) detector |
| Ambient dose equivalent rate range | 10nSv/h～1Sv/h |
| Measurable energy range | 30keV～3MeV |
| Nuclide library | User editable, built-in contains no less than 12 common radionuclides, including:Am-241、 Cs-137、Co-60、Ba-133、I-131、Eu-152、Eu-155、Na-22、K-40、Th-232、U-235 and U-238. |
| Response time | 3s |
| Communication Interface | RS-485 serial port, Ethernet or wireless 4G, etc. |
| Operating temperature | -30°C～+55°C |
| Relative humidity | 0~93%（35°C） |
| Rain | Meet the requirements of Chapter 6 "Rain Test" of GJB1093-1991 |
| Power supply | 220VAC，50Hz |
| Dimension | Φ150mm×550mm (host, without mounting bracket) |
| Weight | No more than 10kg |
