CdWO4
Introduction:
CdWO4 crystal is an excellent scintillation detection material,it has features with high density,low afterglow,good radiation resistance,high light yield,and make it widelyused in the medical CT and X ray
security inspection systems.
Key Features: Applications:
High density Environmental monitoring
High light yield X-ray Computed Tomography
Short radiation length Container scanning system
Low afterglow High energy physics
Properties:
| Density (g/cm3) | 7.9 |
| Melting Point | 1598 |
| Hardness (Mohs) | 4~4.5 |
Index of Refraction | 2.2~2.3 |
Decay time(ns) | 14000 |
| Wavelength of emission max | 475 |
Light yield (Photons/MeV) | 12000~15000 |
Hygroscopicity | None |

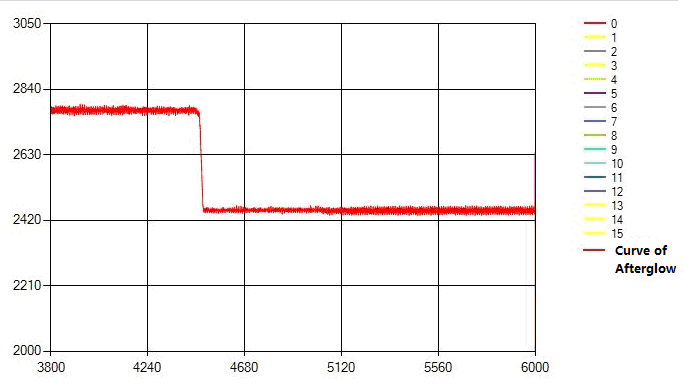

Inspection contents: Afterlow
Inspection positions:
| Instruments | YX-AGLO 01 | Dimension | 5.0*6.0*32.0mm |
X-ray machinery Voltage | 140KV | Coupling method | AIR |
X-ray machinery Current | 0.5mA | Detector Parts | 3#PD |
| Environment Tem | 22℃ | Ambient humidity | 35%RH |
| Parts | Afterlow(5ms) | Afterlow(20ms) | Afterlow(30ms) |
| 1# | 0.21% | 0.13% | 0.06% |
