Introduction:
CsI(Tl) crystal is an excellent scintillation material for its light yield 4 times higher than that of BGO crystal, radiation length shorter than that if NaI(Tl) crystal and excellent mechanical properties,
it has a broad emission spectrum from 350nm to 700nm, which can match well with SPD, it is suitable used in the application of detecting heavy charged particles under strong γ-rays background.

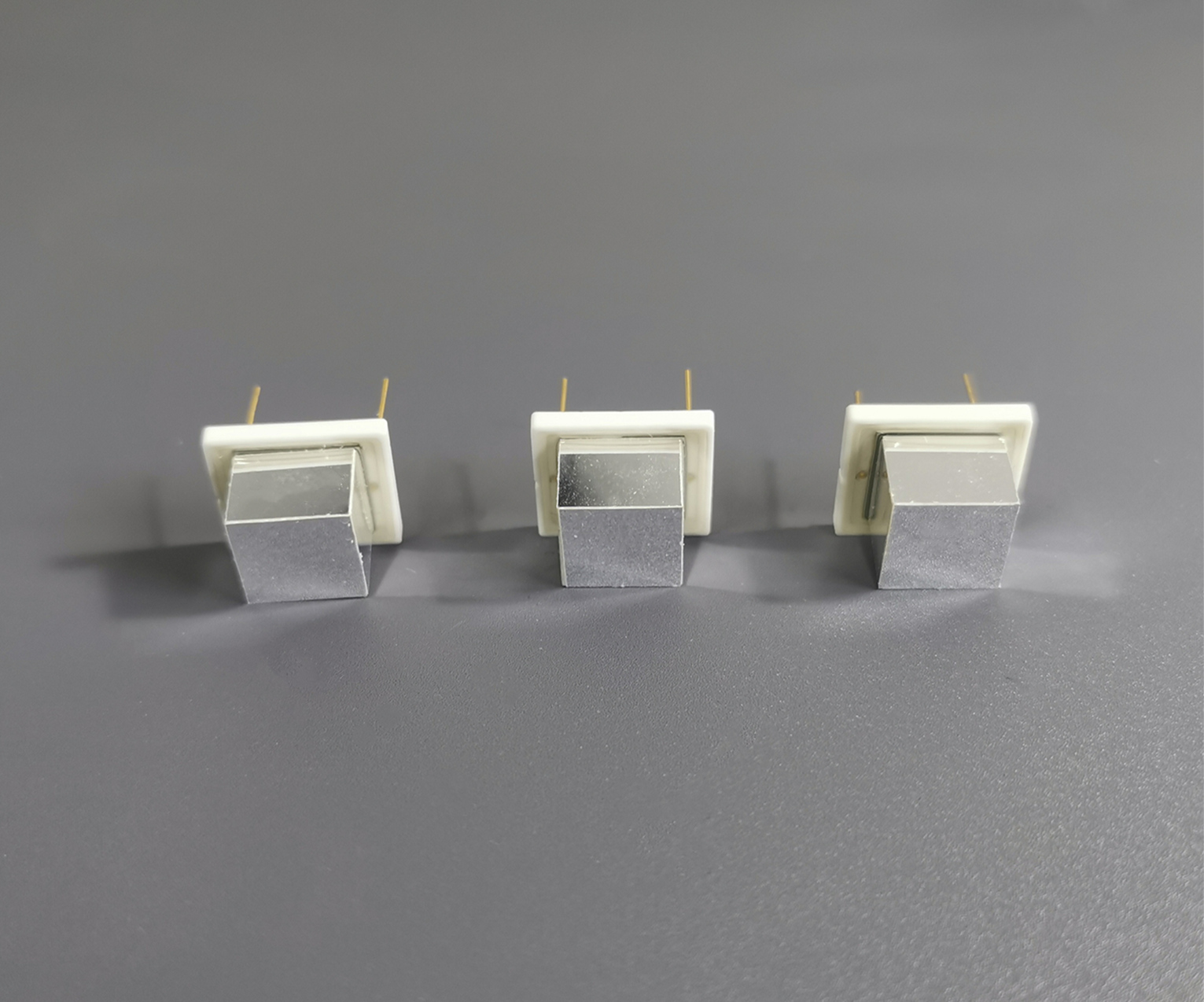

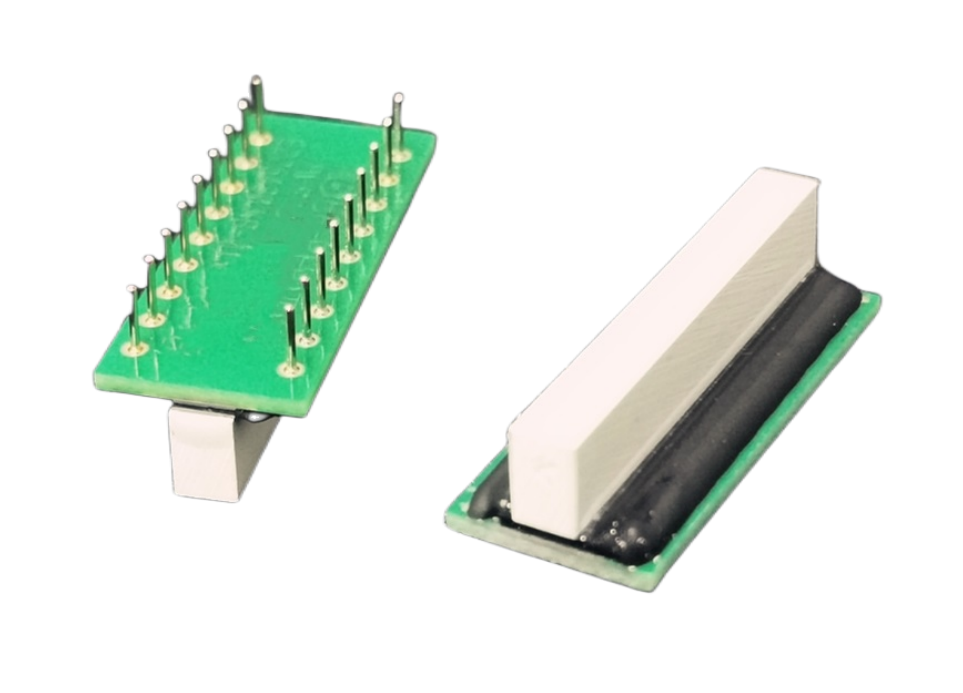

Yong Hee Photonics have the customized services to help our clients to coulpe the crystal to SiPM with various dimensions upon request.
Key Features: Applications:
High light output Medical imaging
Emission wavelength at 550 nm Radiation detection&High energy physics
Compatible with photodiode readout Safety inspection imaging
Properties:
| Density(g/cm3) | 4.51 |
Hardness (Mohs) | 2 |
| Decay time(ns) | 1000 |
Melting Point | 894 |
Index of Refraction | 1.79 |
Afterglow | 0.5-5%@6ms |
Wavelength of emission max(nm) | 550 |
Light yield (to Nal:TI) | 45% |
| Light yield(Photons/MeV) | 59000 |
